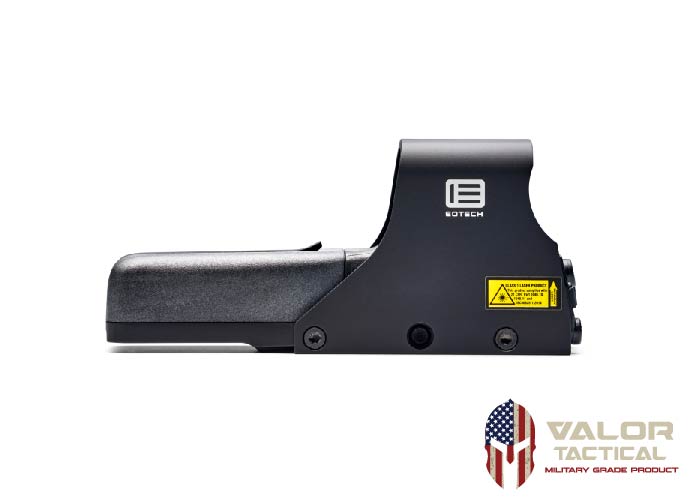

The HWS 552™ is the most popular night vision-compatible holographic weapon sight offered. The AA battery is available globally making these models a favorite. The mount is compatible with both 1" Weaver and MIL-STD-1913 rails.
Included in the box:
HWS 552™
Quick-Start Guide
Warranty Card
2x AA Alkaline Batteries
Protective Case
Night Vision Compatible
L X W X H
5.6" x 2" x 2.5" (142.2 x 50.8 x 63.5 mm)
Weight
11.5 oz (326 g)
Water Resistant
33ft. (10 m) depth
Mount
1" Weaver or MIL-STD-1913 rail
Windage & Elevation Adjustment
0.5 MOA per click
Brightness
20 daylight settings 10 additional settings for Gen I through III+ night vision devices
Power Source
2 x 1.5 V AA batteries - Supports lithium, alkaline or rechargable
Battery Life
Lithium: 2,500 continuous hours at nominal setting 12 at room temperature Alkaline: 2,200 continuous hours at nominal setting 12 at room temperature
Operating Temperature
-40°F to 140°F (-40°C to 60°C)
Country of Origin
Made in USA
Operator Grade Holographic Weapon Sight
An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.
Reticle Options
EOTECH’s unique reticle patterns are a criti- cal to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.
EOTECH One Dot Reticle
Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the opera- tor will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.
