An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.
Technical Specifications
Overview

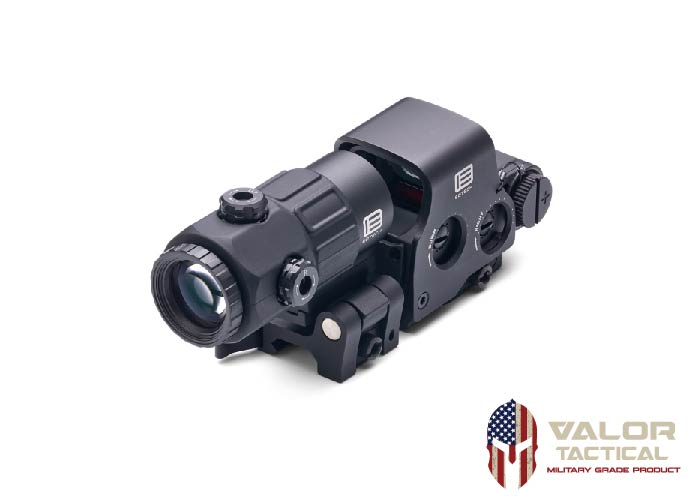

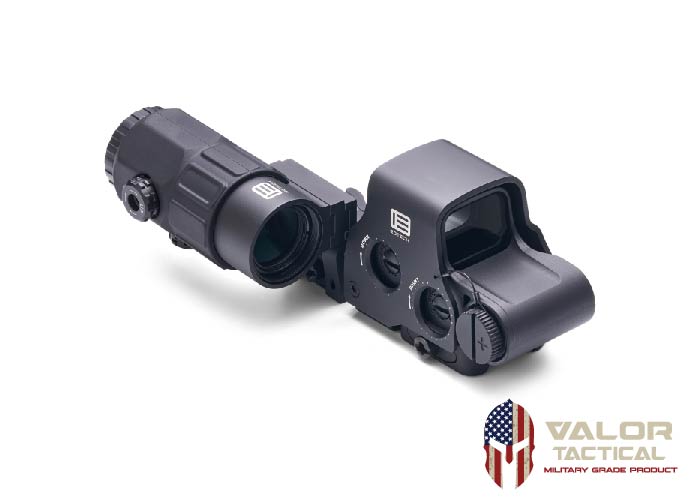

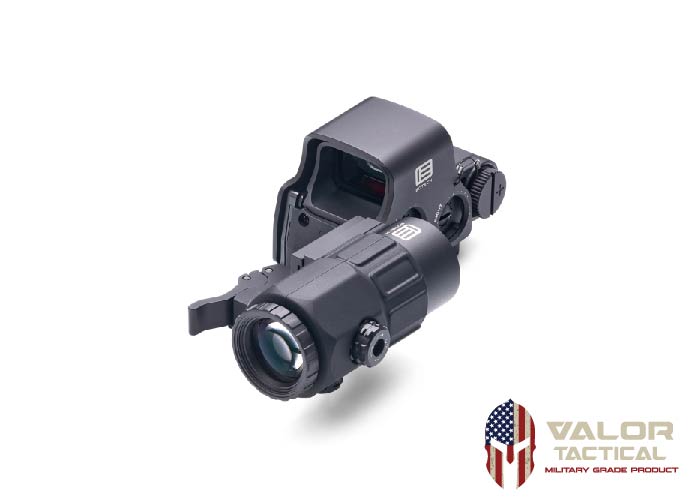

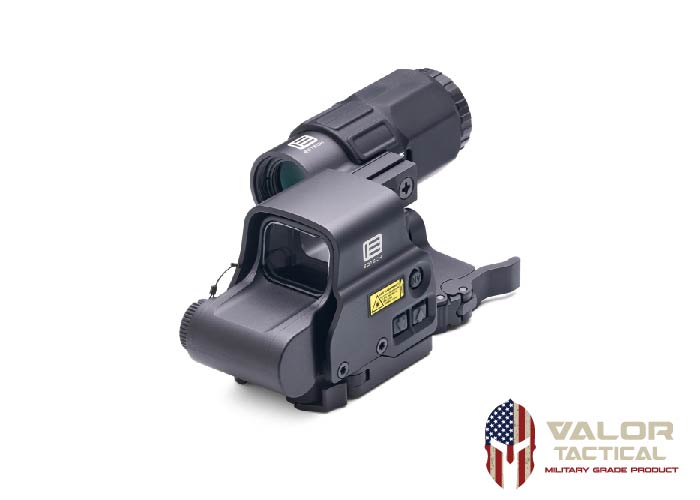

The Holographic Hybrid Sight V (HHS V), featuring a EXPS3-4 with a G45 magnifier combination is the perfect solution for Close-Quarters Combat situations as well as 600-meter targets. Instant transition is achieved through a Switch-To-Side (STS) mount that offers a simple and quick disengagement of the magnifier. This durable night vision-compatible system offers wide field optical performance for visibility in extreme low-light conditions.
* Aiming dots on the 4-Dot reticle may not be distinguishable without magnification.
Included in the box:
HHS™ V (EXPS3-4 & G45.STS)
Quick-Start Guide
Warranty & Registration Card
CR123 Battery
Protective Case
Night Vision Compatible
L X W X H 7.7" x 2.3" x 3.3" (195.6 x 58.4 x 83.8 mm) Weight 24oz (680.4 g) Water Resistant 33ft. (10 m) depth Mount 1" Weaver or MIL-STD-1913 rail Windage & Elevation Adjustment 0.5 MOA per click Brightness 20 daylight settings 10 additional settings for Gen I through III+ night vision devices Power Source 1 x CR123 battery Battery Life 1,000 continuous hours at nominal setting 12 at room temperature Fixed Magnification 5X Eye Relief 2.6" (66 mm) Field-of-View w/ Magnifier 4.4° Sealing Fog resistant internal optics Country of Origin HWS: Made in USA G33: Assembled in USA
Reticle Options
EOTECH’s unique reticle patterns are a criti- cal to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.
EOTECH Four Dot Reticle
Use this ballistic reticle with 5.56 Nato/.223 cal with 62 gr M855 FMJ at roughly 2,680 fps with a 14.5" barrel. For ordering this reticle, the model codes will end in -4. Aiming dots on the 4-dot reticle may not be distinguishable without magnification.
