Aircraft Grade Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece. Fog Resistant Nitrogen gas purging prevents internal fogging over the operating temperature range. Shock Resistant The rugged design prevents damage from heavy recoil and rough handling. Water Resistant The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments. Anti-Reflective Lenses XC™ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Technical Specifications
Overview

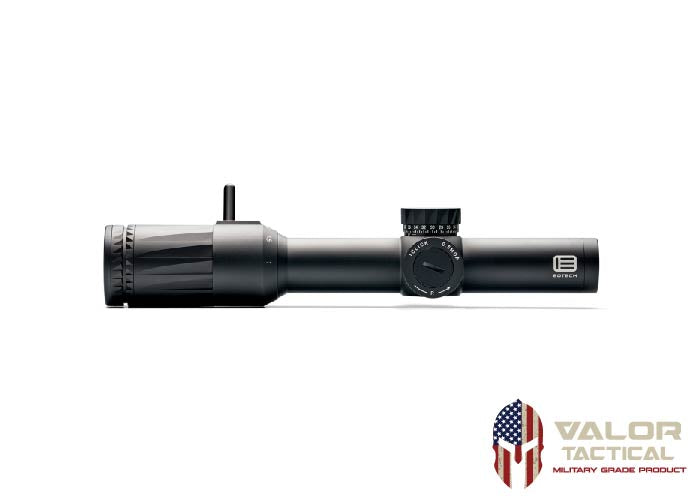

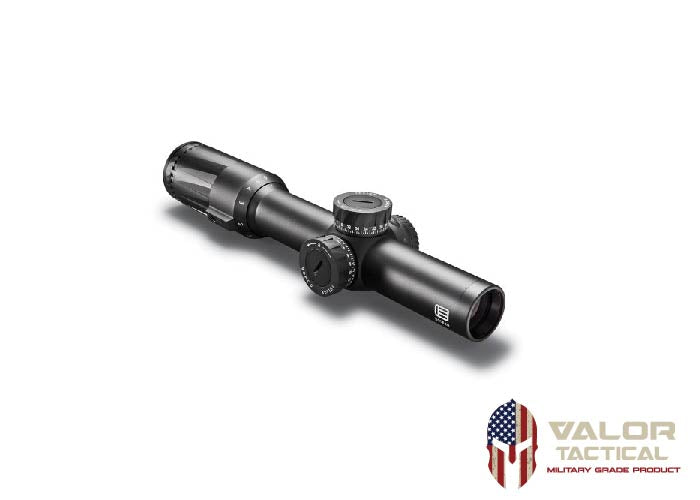

This is an optic that feels at home on the AR platform or on a bolt action rifle. The EOTECH Speed Ring reticle allows for fast target engagement at low power, but at higher power provides the resolution and accuracy required to tackle longer shots. The Vudu 1-6X is the perfect solution for short- to medium-range applications.
Overall Length 10.63" (270 mm) Weight 20.1 oz (570 g) Magnification 1-6X Tube Diameter 30 mm Objective Diameter 24 mm Power Source CR2032 Eye Relief 1X: 3.27-3.94" (83-100 mm) 6X: 3.23-3.94" (82-100 mm) Field-of-View @ 100 Yards 1X: 102.4 ft (31.2 m) 6X: 16.7 ft (5.09 m) Country of Origin Made in Japan
Reticle Specifications
Vudu SR1 Reticle
The SR1 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD sub-tension lines for ranging, holdover and wind compensation. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner crosshair comes in to view for more precision on longer range shots.
Vudu SR2 Reticle
The SR2 incorporates the iconic EOTECH illuminated speed ring along with a BDC inner reticle calibrated for the 7.62 mm (M118LR) out to 600 yards. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner BDC comes into view for more precision on longer-range shots.
Vudu SR3 Reticle
The SR3 incorporates the iconic EOTECH illuminated speed ring along with a BDC inner reticle calibrated for the 5.56 mm (75gr. BTHP) out to 600 yards. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner BDC comes into view for more precision on longer-range shots.
Adjustment Graduation Per Click 0.2 MRAD Adjustment Graduation Per Rotation 15 MRAD Total Elevation Travel 29 MRAD Total Windage Travel 23 MRAD
